Quiko swing gate operator – E-600 Eon swing gate acuators

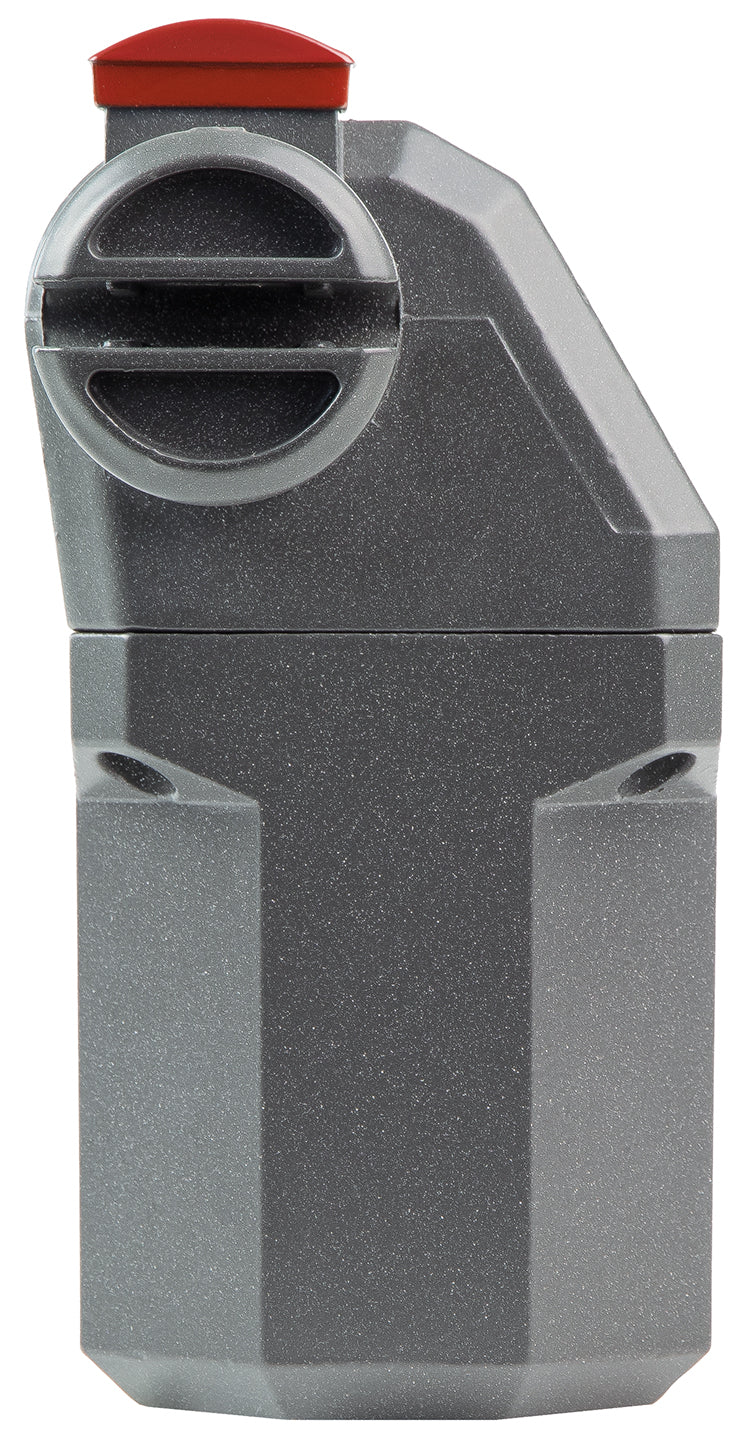

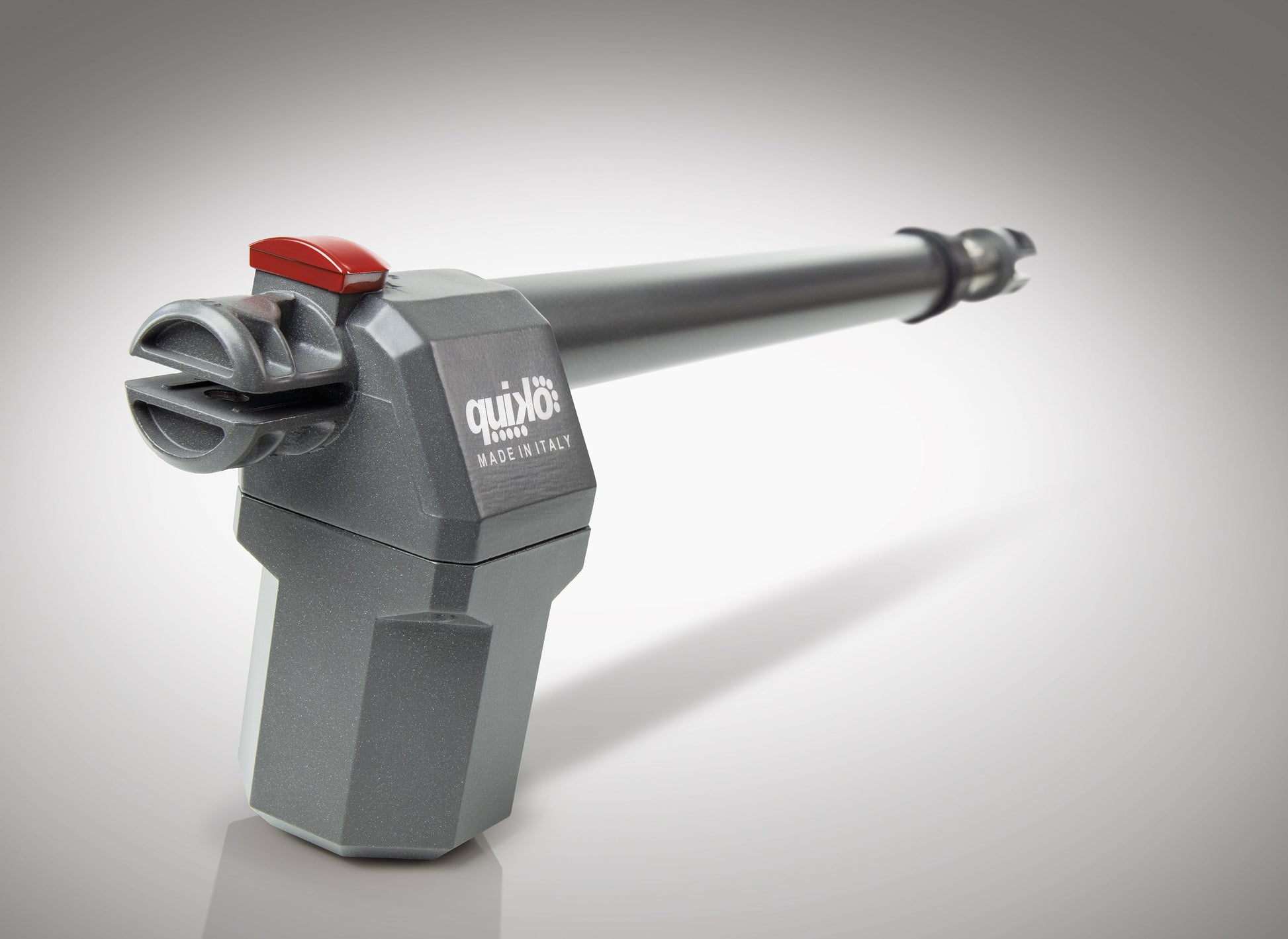

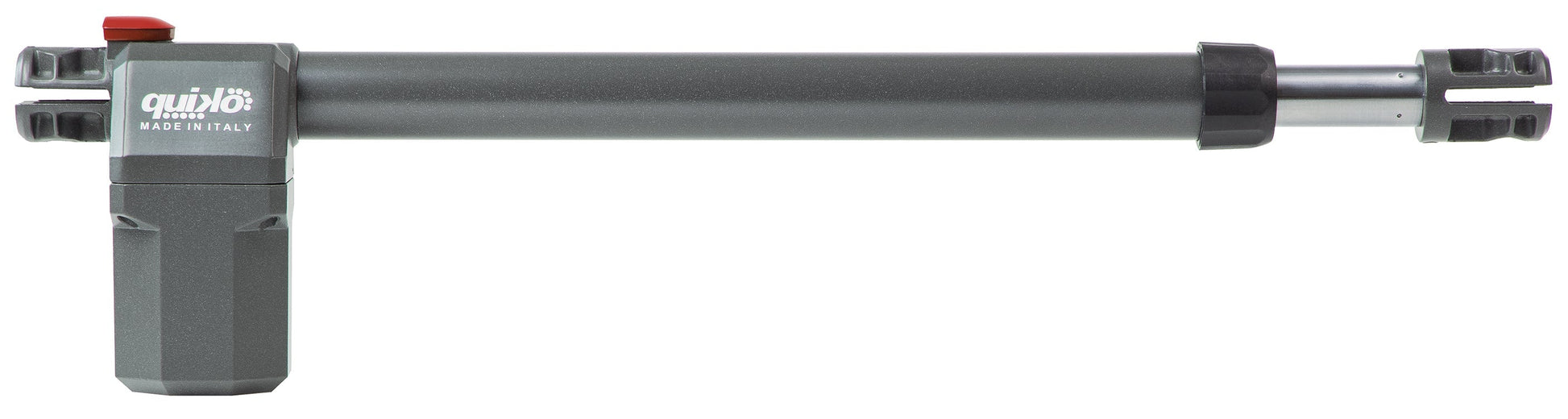

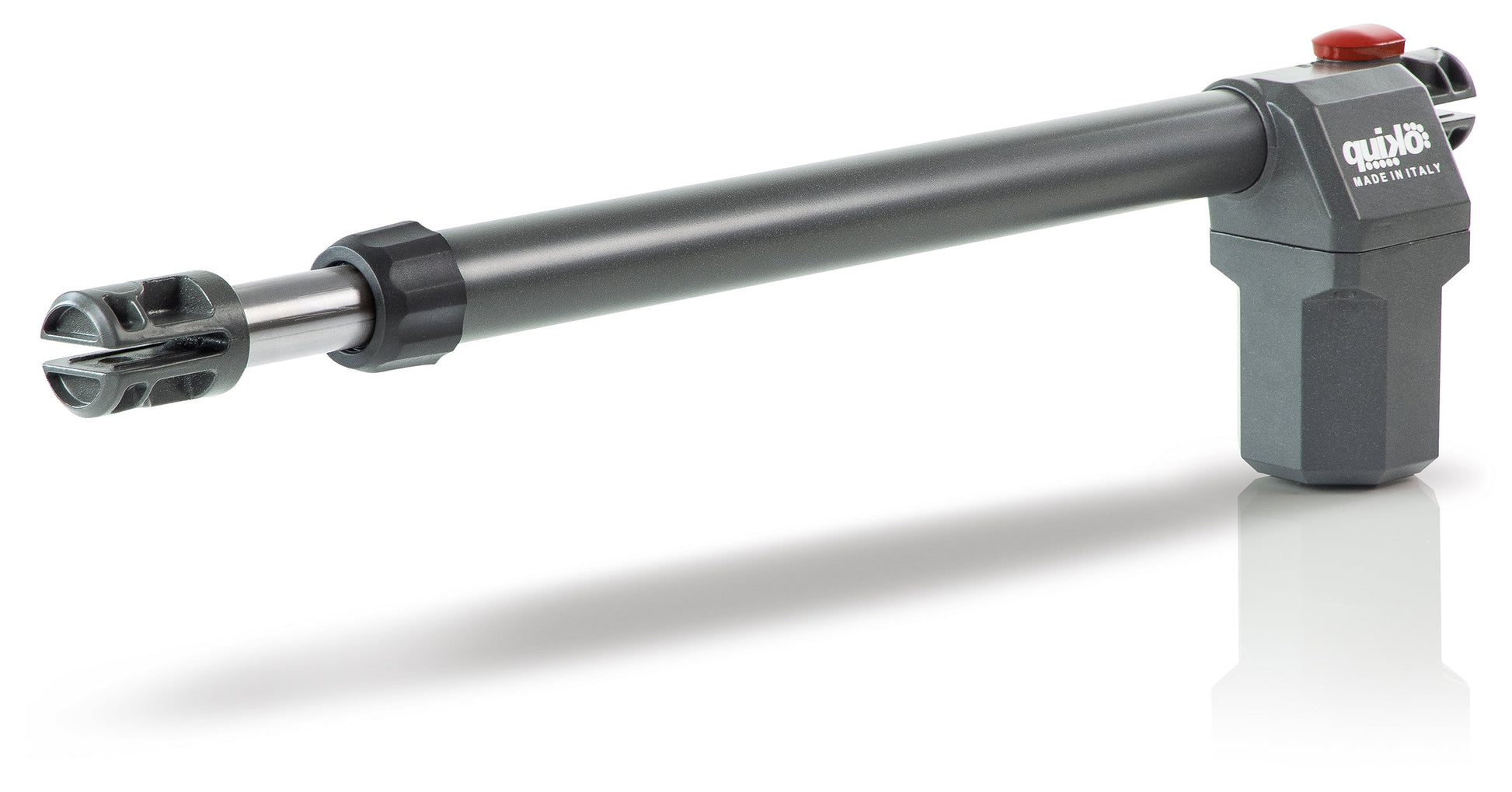

EON is the linear swing gate operator of QUIKO particularly intended for residential applications. Leaves up to 4m can be automated with ease with this Gearmotor, which dimensions allow it to be installed in areas where limited space is available.

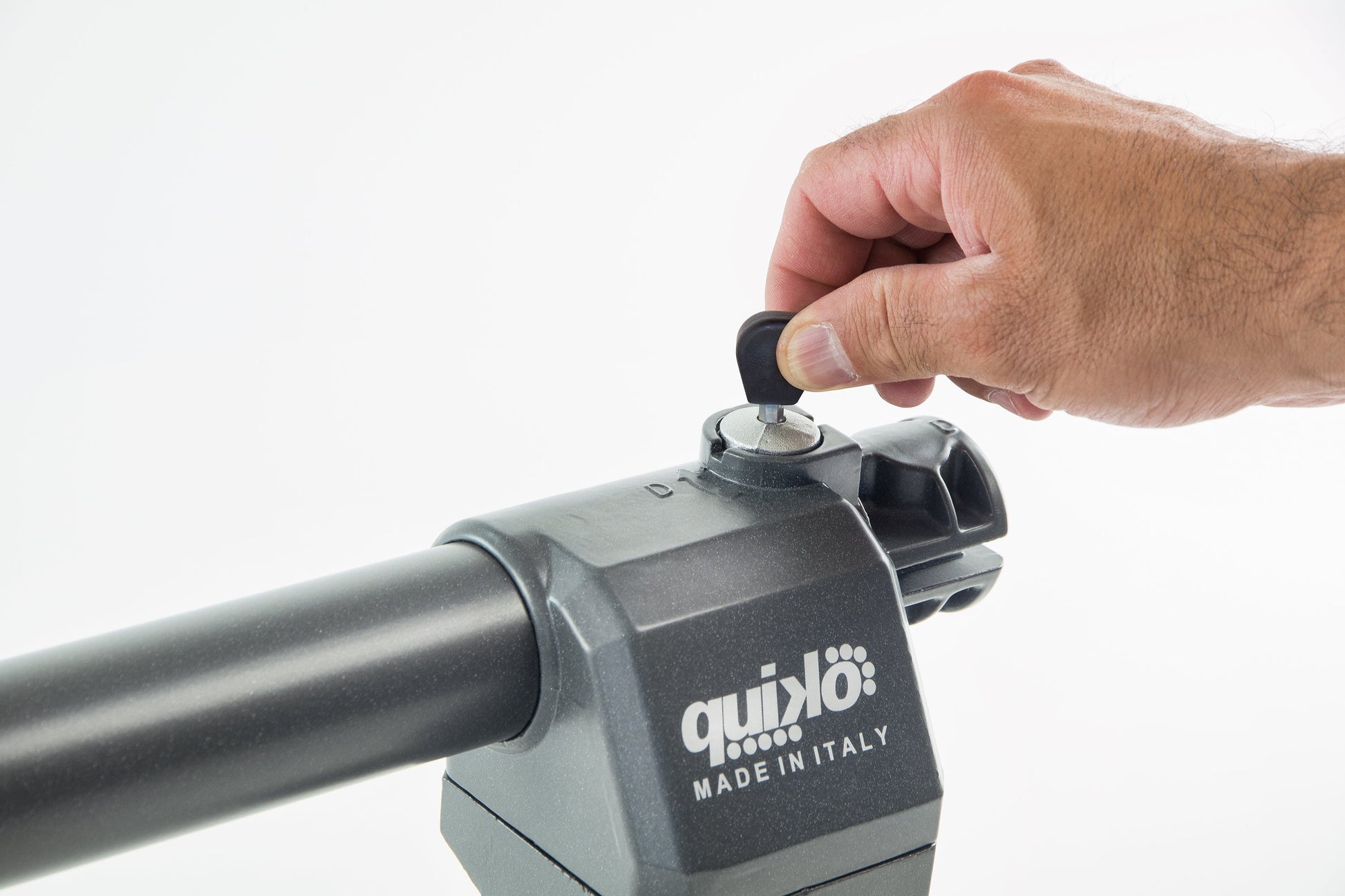

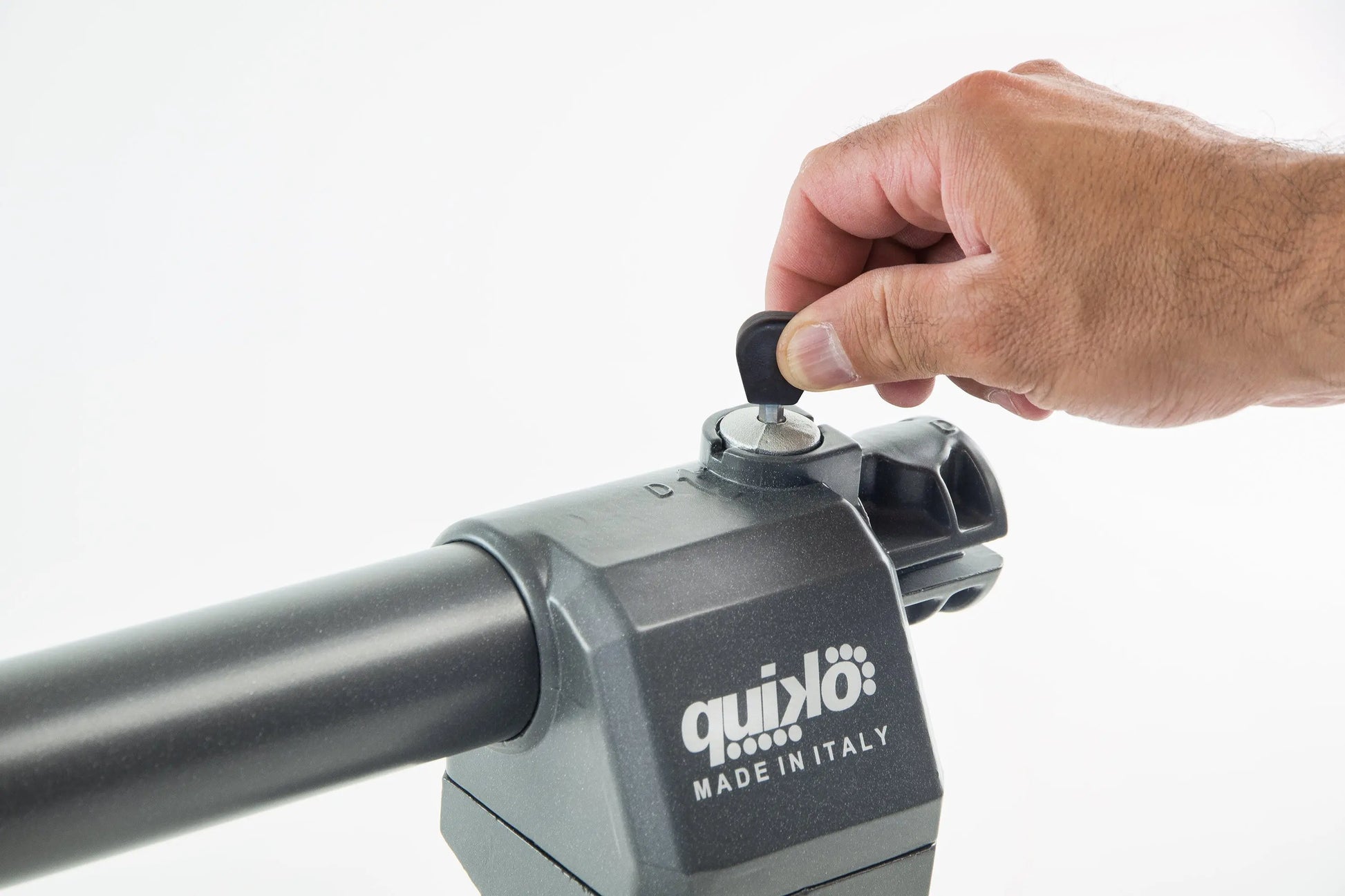

The actuators are self-locking and can be unlocked easily in case of electrical blackout by means of the supplied unlocking key. Moreover, the 24V version can be operated even in absence of electricity by means of the optional backup battery unit. Quiko Italy offers inground gate operators in this category that are mostly used while renovating historic buildings. These inground swing gate openers ensure a clean line for the gate to operate. The swing gate openers category also includes other products like articulated arm gear motors that aids in the application of residential swinging gates actuators. These gear motors have the added advantage of easy installation and can be unlocked with ease by means of an apposite key. EON series swing gate actuators are the irreversible operators that are primarily used in operating swing gates. The linear swing gate operators have a temperate design comprising of key operated manual release system in case of an electricity blackout.

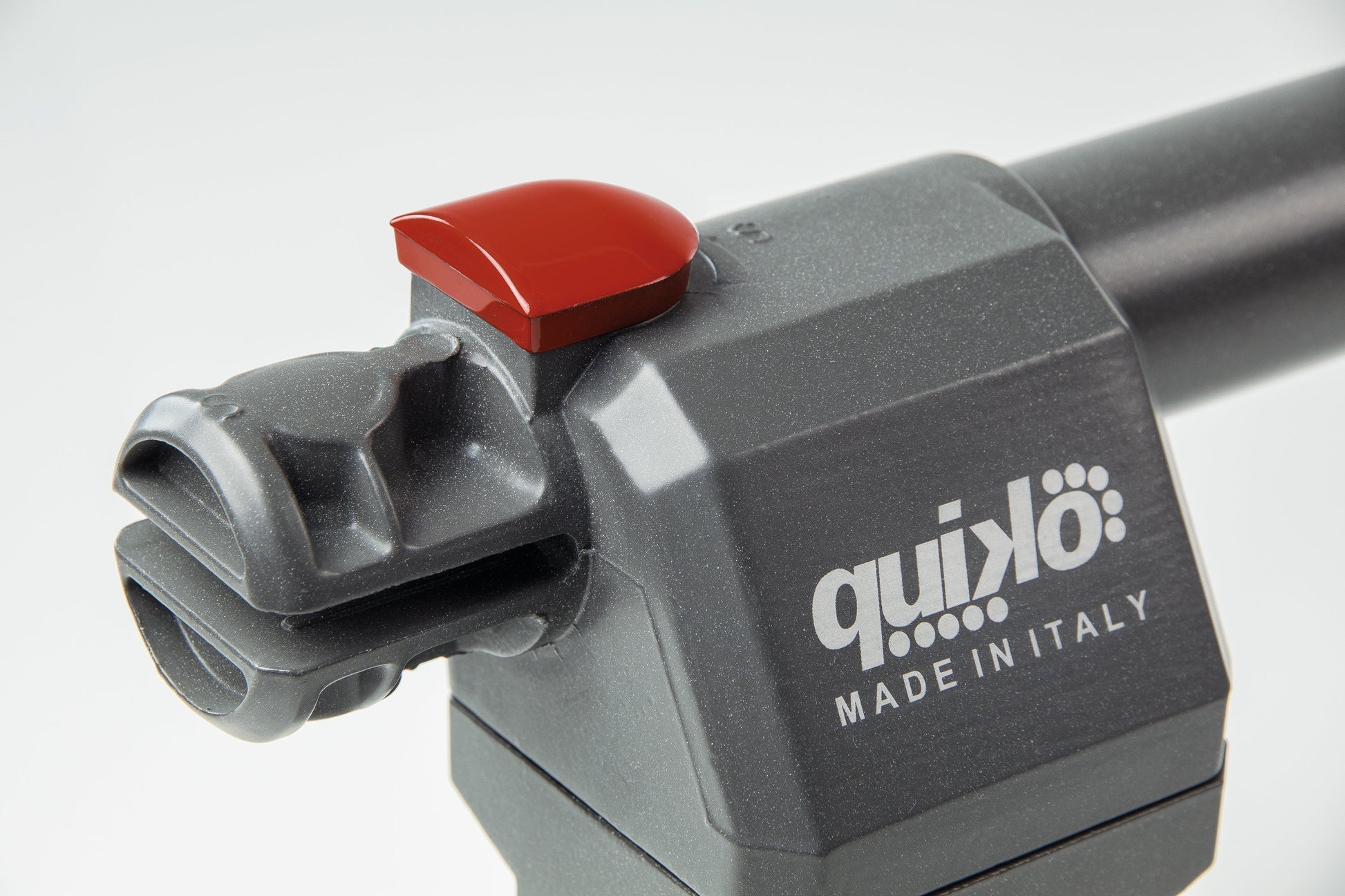

Thanks to the sturdiness of materials used during production, EON is almost maintenance-free and designed to last long.

• Residential swing gates, slim form factor for tight spaces 🧭
• Max leaf length: 4m (E400 series) or 5m (E600)
• Power options: 230Vac or 24Vdc
• Opening time: 20s standard, 10s high-speed ⚡
• Duty cycle: 40% (230V) or 100% (24V) — great for frequent use
• Backup during blackout: 24V + optional battery (QK-BPACK1) 🔋
• Protection IP44; temp -30°C to +70°C; Max thrust 2200N
• Manual key release for power loss situations 🔑

How to choose the right model

• Gate length
  • Up to 4m: E400 series (QK-E400 / E400B / E400FX / E400BFX)
  • Up to 5m: E600 (230Vac)
• Power and usage pattern
  • Many daily cycles or want battery backup: 24Vdc (E400B / E400BFX) ✅
  • Standard residential use with moderate cycles: 230Vac (E400 / E400FX / E600)
• Speed preference
  • Normal: 20s open
  • Fast: FX models (10s) ⚡
• Single vs double leaf
  • Single: individual operators
  • Double: choose KIT versions (X2)
• Environment and reliability
  • Windy/long leaves: consider electric lock QK-ELS for leaf stability 🔒
  • IP44 is weather-resistant but not for direct water jets; add shielding if needed

Ready-made kits (for double gates)

• QK-E400KIT: 230Vac, up to 4m (x2)
• QK-E400BKIT: 24Vdc, up to 4m (x2)
• QK-E400KITFX / QK-E400BKITFX: high-speed variants (x2)
• QK-E600KIT: 230Vac, up to 5m (x2)

Recommended options and control

• Backup battery: QK-BPACK1 (for 24V systems) 🔋
• Electric lock: QK-ELS (helps hold long/heavy leaves closed)
• Control boards with receiver:
  • 24V: QK-CE24BATRE (433.92 MHz)
  • 230V: QK-CE220BATRL4 (433.92 MHz)
• Replacement/spares: QK-BRAE400 brackets

Practical action steps

• Measure each gate leaf length (confirm ≤4m or ≤5m) 📏
• Note single vs double leaf
• Estimate daily cycles (e.g., 20/day vs 100+/day)
• Decide if you need fast opening (10s) or standard (20s)
• Check available power (230Vac nearby) and if you want blackout operation (24V + battery)
• Consider wind exposure; add QK-ELS if long/heavy or windy
• Match a KIT if it’s a double gate; choose the control board frequency with your remotes
• Plan a weather-shielded installation and confirm IP44 is sufficient for your site

Different points of view

• 24V vs 230V:
  • 24V pros: smoother, safer low voltage, 100% duty cycle, battery-ready; cons: slightly more components
  • 230V pros: simple setup, strong performance; cons: 40% duty cycle, no native battery option
• High-speed models:
  • Pros: convenience and traffic flow; cons: may require careful stop adjustments and lock use for long leaves
• E600 choice:
  • Great for up to 5m leaves, but only in 230Vac; if you need 5m + battery backup, you’ll need a different platform

Rare cases and cautions

• If your leaf exceeds 5m or is unusually heavy, another operator series may be better
• Frequent heavy use on 230Vac could hit duty cycle limits; prefer 24V
• Very wet environments may exceed IP44; add housing or consider higher IP solutions

Quick clarifications I’d need to give you a precise pick

• Leaf length (m) and approximate weight if known
• Single or double gate
• Daily open/close cycles
• Preference for fast opening (10s) vs standard (20s)
• Power availability (230Vac) and need for battery backup
